Pando
Decorative cooker hoods
Our technology
Our goal
Quality, design, innovation, and eco-efficiency
Pando is and will continue to be a company that stands out for QUALITY, DESIGN and INNOVATION. A brand with a strong commitment to its origins and the aspiration to increase the performance of its products and the satisfaction of its clients is the driving force of its whole team.
AIRLINK
More Comfort
Smart control system to combine COOKER hood and induction hob functions.
- Light turns on automatically when hob is connected.
- Motor starts automatically when cooking cycle begins on any part of the hob.
- Motor powers up or down, depending on the power level set on the cooktop.
- All hood functions can also be controlled manually.
Pando LED
Choose your own light
Customized led lighting system
Pando LED: the ultimate last-generation LED lighting, it can be used to create a multitude of individual atmospheres, with excellent energy-saving performance. The reference in lighting of Pando products.
Electronic LED lighting Dimming Device for energy emission and light regulation. This makes it possible to adapt intensity and color to any working light mood and energy saving level. Candle light / Twilight / direct sun light / clear day / Pale Blue Sky.
AIR FILTERING SOLUTIONS
Recirculation systems
Wall & island cooker hoods
Classic recirculation for wall and island units (exit through the side grill in the HOOD CHIMNEY)
Ceiling cooker hoods
Recirculation system using high-efficiency ceramic filters through a CEILING DIFUSSER.
Worktop integrated cooker hoods
Recirculation system using high-efficiency ceramic filters through a PLINTH DIFFUSER.
FCA – Activated carbon Filters
Suitable for recirculating cooking gases or also for environmental purposes. Their effectiveness is directly related to the kind of cooking done.
% Smell reduction percentage factor: 40,8 %
Filter life : 2+6 months
Washable: NO
Reactivatable: NO
FCLR-AE – HIGH-EFFICIENCY washable and reactivated carbon filters
Far superior in performance vs the FCA system, these new HIGH-EFFICIENCY CARBON FILTERS (FCLR-AE) provide excellent results. Thanks to their special material they also be dish-washed and reactivated in the oven. They can last over 2 years, depending on the maintenance and type of cooking.
% Smell reduction percentage factor: 87,4 %
Filter life: 2 years
Washable: YES
Reactivatable: YES
Reactivate in an oven at 90º for 60 minutes
FCCR-AE – HIGH-EFFICIENCY reactivatable ceramic active carbon filter
Even more efficient than the FCLR-AE, these last-generation HIGH-EFFICIENCY CERAMIC filters (FCCR-AE) achieve enhanced results in recirculation. Their specific construction gives them the enormous advantage so they can be reactivated several times in the oven. They are extremely resistant and can easily last over 3 years. A fine maintenance is of key importance.
% Smell reduction percentage factor: 95%
Filter life: 3 years
Washable: NO
Reactivatable: YES
Reactivate in an oven at 180º for 90 minutes
HEPA – High-Efficiency Particulate Air
Maximum extraction efficiency. They are the most effective filters for the removal of particles suspended in the air. It is calculated that they can trap more than 99% of these particles down to 0.3 micrometres in diameter.
Their composition by means of the folding of micrometric glass fibres interwoven in the form of a net together with the fusion of High Efficiency active carbon, make them ideal for those hoods with a recirculation system because as well as trapping the concentration of particles suspended in the air, they are really effective at capturing the particles that cause bad smells, guaranteeing a return of clean air to the kitchen.
The service life of this type of filter depends to a large extent on the frequency, method and intensity of cooking. Therefore, we can only assume average values of 8-12 months of use. Once this period has elapsed, it must be replaced.
% Smell reduction percentage factor: 99,9%
Filter life: 8-12 months
Washable: NO
Reactivatable: NO
Filters
Pure air Solutions
Automatic filter saturation detection
Automatic system warns you when filters need to be cleaned, via a signal on the control panel.
Filters of 9 layers:
Higher grease absortion Higher extraction airflow speed Noise reduction Ideal size for dishwasher cleaning
Aluminium filters:
Made of light alloy, these are essential to capture and retain fat particles. Their distinctive grille pattern makes them especially useful.
Stainless steel filters:
Made identically as the aluminium ones, but they additionally feature a stainless steel cover to protect them and extend their useful life, as well as making them look more attractive.
Labyrinth or professional filters:
Made entirely in top-quality AISI 304 stainless steel, these filters are ready to work hard and display their good fat particle retention strategies. Enormously durable, their features are 100% professional.
Automatic filter saturation detection:
Automatic system warns you when filters need to be cleaned, via a signal on the control panel.
Filters BLACK:
Black-finished filters that visually unify the set while maintaining the same characteristics and properties as traditional stainless steel filters.
Diffuser
Recirculation systems
Plinth diffuser H 60 mm
height 108 cm or 60 cm.
Both measurements can be used for both types of installation.
Height 108 cm
Height 60 cm
Side exit
Front exit
CORNICE Diffusers
height 108 cm.
Specially designed to be placed both vertically and horizontally. Placement is really comfortable and simple, just by modifying the air intake of the diffuser depending on the installation requirements. It has fixing clips that fit perfectly to the false ceiling or furniture, making installation easier.
Available in Aluminum or white finish.
Exit 90º
Horizontal exit
For ceiling hoods
CEILING diffuser
For installation cut out an area of 665 mm x 165 mm at a minimum height of 210 mm in the false ceiling.
(1) Minimum distance between hood and diffuser of 2 m.
Available in stainless steel or white.
SEC SYSTEM®
More Comfort & Eficiency
Soundproof & easy cleaning

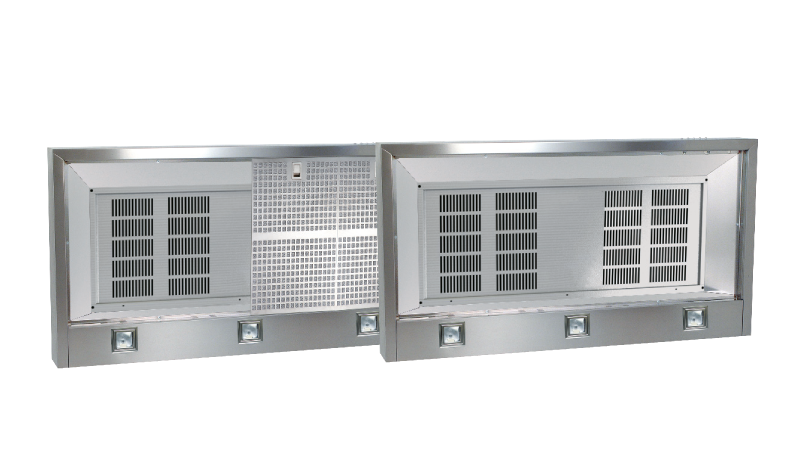

S.E.C. System®
Easy Cleaning System®
1. Lower tray made of stainless steel for easy cleaning.
2. Double-function internal protective grille.
Soundproof System®
3. New internal motors. Metal wheel and silent block on center shaft.
4. Motor-housing box insulated with sound absorbent, fireproof, grease-resistant foam.
5. Includes 50cm flexible corrugated tube made of sound absorbent, double-chamber, micropore aluminium film.
S.E.C. System® PLUS (V.1050 EC0)
V.1050 ECO
All the features of the S.E.C. System® and:
6. New noise-deadening insulation
7. New box to improve motor performance
8. New system with ultra-rapid fixing adjustment
9. New silent block to reducce vibrations
10. Reinforced, more rigid chassis to ensure better noise containment
11. New special aerodynamic flaps
Motors High Versatility
Maximum perfomance with
Minimum energy consumption
And excellent sound levels
Pando offer a choice of high-performance motor solutions, with easy installation so allowing you to perfectly adapt our products for ultimate performance. Many of our motor systems feature ECO efficient devices, offering high performance at very low noise levels.
Internal motors
Motors fitted inside the hood casing.
Many of the versions feature ECO efficient systems offering high performance at very low noise levels. The V.1050 system offers up to 20% noise reduction The V.1130 ECO PLUS achieves up to 57% higher flow and improved pressure in the pipe
Duct-in-line remote motor
Duct-in-line remote motors fitted separately from the hood chassis.
They can be mounted on a false ceiling or under the roof. They cannot be installed outdoors. High extraction capacity and without noise. INCLUDED The models with the V.2450 and V.3000 duct-in-line remote motor comes with 5 m of S.E.C. fume extractor flue as standard System®, interior Ø 203 mm and exterior Ø 253.
Roof motors
Motors for mounting on the roof top of the house.
Suitable for all weathers. High extraction capacity with no noise. INCLUDED The models with the V.2350 and V.3300 Roof motor system, comes with 5 m of S.E.C. fume extractor flue as standard System®, interior Ø 203 mm and exterior Ø 253.
Wall motors
Motors for mounting on the outside wall of the house. Suitable for all weathers. High extraction capacity with no noise.
Control panels.
Easy-to-use.
Control, design and functionality
LAST-TIME FUNCTION
An automatic stop system available on a wide range of models. When this function is activated the hood stops automatically a few minutes after it is used, to ensure that any remining fume is also extracted.
Electronic button panels and Touch Control
The control panels featured on our units, depending on the characteristics of each model, can be used to control the speed, lighting etc. It includes an automatic safety stop.
Button panel for wall inset mounting
All ceiling-mounted models can now benefit from a new optional feature: a control button panel for the hood set into the wall. The system comes with up to 10 m of cabling as standard. (*) Except E-237
Remote TOUCH control
Remote control system for the hood functions. This is standard for all Ceiling models and optional for many others. It includes an automatic safety stop.
Wi-Fi and
Pando App
Wireless connectivity through the new Pando Connect App
- Remote Control: Monitor and control the hood from anywhere in the home, garden, workplace, or any location with internet connection.
- Customization and access to information: Edit the device name and access a variety of help documents for hood usage. Additionally, share hood usage with other devices in the same household that also have the Pando app installed.
- Immediate access to relevant hood operating data, such as:
Electric consumption in watts of the motor and lights independently and collectively.
Airflow in cubic meters per hour.
Filter usage time with information on time until next maintenance.
Motor operating status, such as designated speed.
LED lighting color and intensity. - Agile Control: Manage all hood functions through an easy-to-use touchscreen on your mobile device, including functions like AIR Clean and Last Time.
- Custom Timer: Personalize time and speed settings for an automatic shutdown program.
- Full LED Control: Adjust LED lights with greater range, controlling more brightness and color points than with manual adjustment through the electronic control panel. With the Slider adjustment system, LED adjustment is simple with numerous combinations.
- The latest-generation WiFi module allows integration of hood control into major home automation control systems.
Hoods equipped with the Wi-Fi + App system as standard are clearly identified on the website and in the online catalog with their corresponding icon. Additionally, a video tutorial for downloading and operating the application is included.
Our Technolgy
Pando
OPTIMAL STRUCTURE AND SHAPES ALONG WITH BEST OF TECHNOLOGIES FOR YOU TO ENJOY AN OUTSTANDING DECORATIVE COOKER HOOD.
Adaptability
Innovation – AirLink
Lighting – Pando LED System
Solutions for Filtering of air
Comfort & Silence
Our Technology
Pando
WE ARE EXPERTS:
HIGHEST EXTRACTION LEVELS ON A MINIMUM ENERGY CONSUMPTION
Versatility MOTORIZATIONS & INSTALLATION
Efficiency
Clean air solutions
Easy installation
Safety
Pando
ECO
RESPONSIBILITY
SYSTEMS TO REDUCE ENERGY CONSUMPTION AND TO MAXIMIZE PERFORMANCE
Pando reinforces its commitment to its customers and the environment with new high-performance systems and minimum power usage.
